| Quantity: | |
|---|---|
XZS
ZCY
XZS-300 XZS-450
Product description
450 Type filter screen is a small size vibration sieve, easy to move, low noise.It is a single-deck screen ,used to be powder grading, liquid filtration. It is suitable for powder sieving and slurry filtration with small particles.
Technical parameters
Model | Effective diameter (mm) | Frequency (Minutes/time) | Dimensions (mm) | Power (kw) | Voltage (V) | Weight (kg) |
XZS-300 | 260 | 1460 | 400*350*500 | 0.12 | 220V/380V | 30 |
XZS-400 | 400 | 1460 | 500*450*600 | 0.18 | 220V/380V | 40 |
Applicable industry
Chemical industry: paint, ink, color paste, paint, latex paint, aluminum slurry.
Food industry: starch, soy milk, fruit juice, beverages, milk mouth, spices.
Other industries: mud, pulp, waste liquid, Chinese and Western liquid and so on

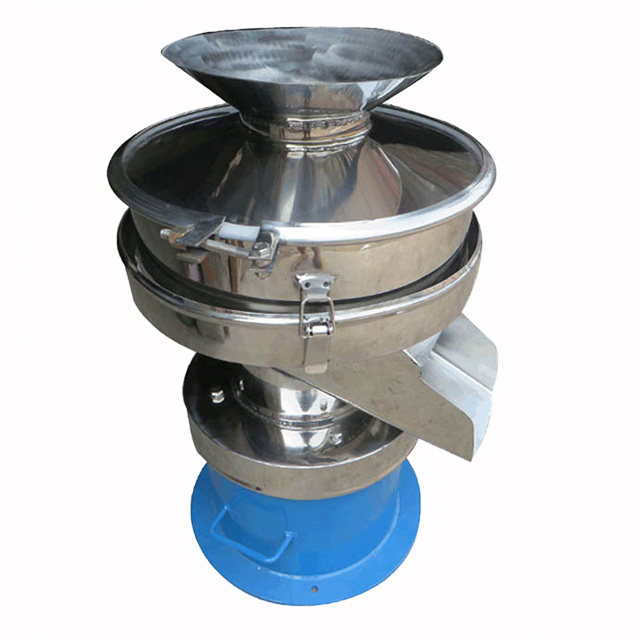

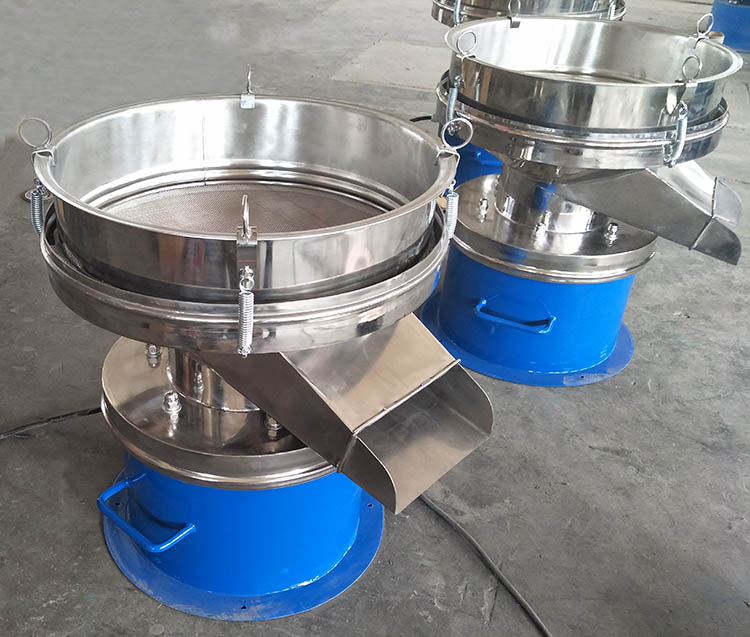

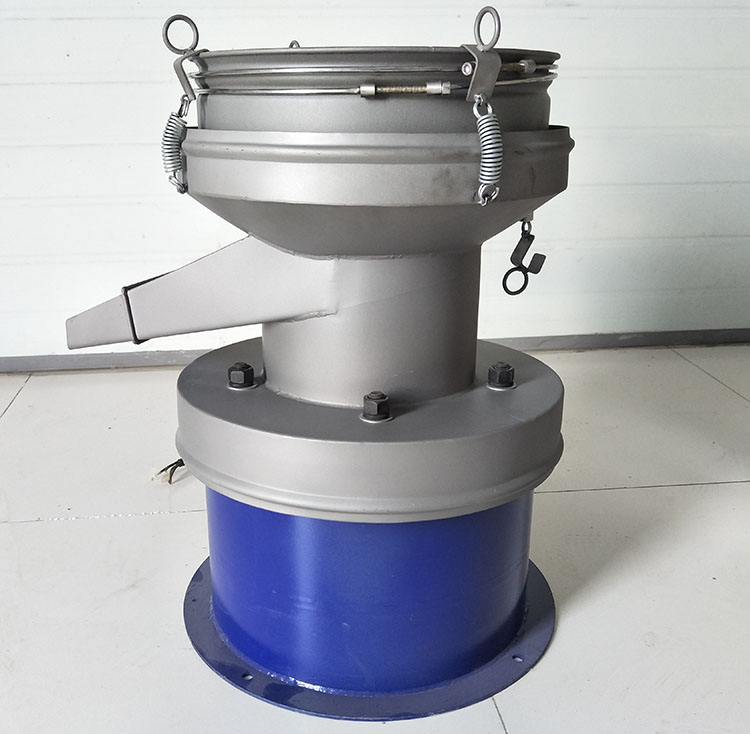

Product pictures
