High frequency vibrating screen

High-frequency vibrating screen with high efficiency, small amplitude, low noise, high frequency screening characteristics,etc. different from the principle of ordinary filter, high-frequency sieve with high frequency, the destruction of the slurry surface tension, accelerating the proportion of useful material separation, adding less than the separation of granular materials and the probability of contact with the screen.

Quantity:
  • GPS
  • ZCY
  • GPS-600  GPS-800  GPS-1000  GPS-1200

Product description

High-frequency vibrating screen with high efficiency, small amplitude, low noise, high frequency screening characteristics,etc. different from the principle of ordinary filter, high-frequency sieve with high frequency, the destruction of the slurry surface tension, accelerating the proportion of useful material separation, adding less than the separation of granular materials and the probability of contact with the screen.


Technical parameters

Model

Power

Diameter

Maximum excitation force

GPS-600

0.25KW

560mm

5000N

GPS-800

0.55KW

760mm

8000N

GPS-1000

0.75KW

1000mm

10000N

GPS-1200

1.1KW

1130mm

15000N


Product features

1. The vibration amplitude is small, the frequency is high, up to 3000 times/min, and the material screening effect is good. To

2. It adopts the self-developed "Z" type net frame, which is convenient and simple to change the net. It only takes 3-5 minutes to change one time. To

3. A movable frame is installed, which can be adjusted in height and moved freely in the workplace.

4. The unique dish-shaped design makes it easier to observe the material without splashing, and the effect is better.

5. The parts in contact with the raw materials are all made of SUS304 material with beautiful appearance.


Product pictures

High frequency vibrating screen (5)

High frequency vibrating screen (6)

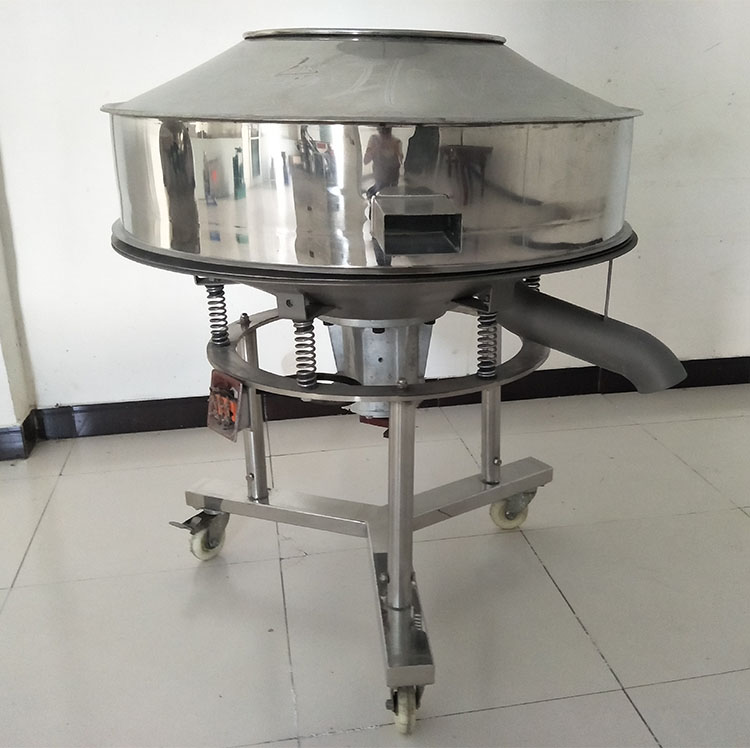

High frequency vibrating screen (7)
