Product description
Horizontal vibrating conveyor / feeder is an important inertia vibrating conveyor. Its simple structure and various forms and specifications can meet the requirements from different application backgrounds in various industry. It is widely applied to short and intermediate transportation of small block, granular, and power material.
Working principle
Two vibration motor synchronous rotation caused by the excitation force to make the box vibration, to promotethe material forward to do the jump-type linear motion.
Struction
SZG series vibration conveyor consists of vibration source- vibration motor or vibration excitor,supporting body , vibration damper, load-supporting base and other accessories.According to the working environment and specific requirement of the materiel,the supporting body of the conveyor can be shaped as U groove and tubular.It can also be made in openning type and sealing type to satisfy different technological process.
Technical parameter
| Model | Capacity(t/h) | Max. conveyoying(m) | Max. feed size(mm) | Speed(r/m) | Power(kw) |
| SZG480 | 11 | 8 | 60 | 1450 | (0.6-3)*2 |
| SZG880 | 17 | 8 | 80 | 1450 | (0.6-3)*2 |
| SZG1080 | 25 | 8 | 100 | 1450 | (0.6-3)*2 |
Main Features
1)No dead ends, easy to clean,flush with water or compressed air |
2) The structure is simple, and there is no material residue in transportation. |
3)Convenient operation and maintenance, no bearing and other transmission parts |
4)Climbing height up to 9 degrees |
5)Can meet the food and medicine level standards |
Application
This machine can not only transport the common material in normal temperature,but also can convey the poison-contained material in high temperature.If making additional work on the supporting body,other technological requirements can be realized during transportation,such as filtration,dryness,warming-up and cooling of the material.

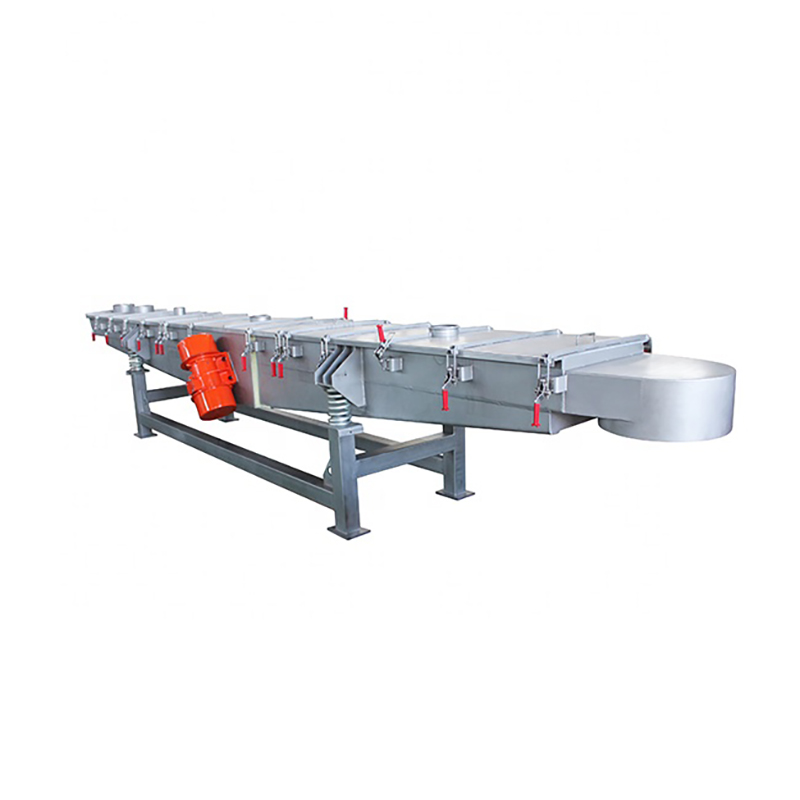

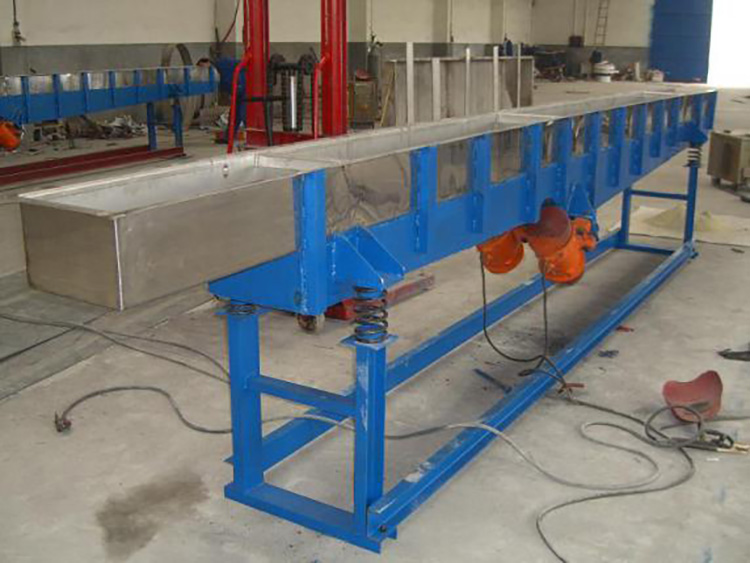

Product pictures
