Slap type vibrating screen

Slap-type vibrating screen (slap standard vibration sieve machine) also known as slap screen, is one of the commonly used laboratory testing equipment, consisting of engine base, sifter, transmission parts etc. Be applied to test the composition of common abrasive particle size and super-hard material size ,and grading the super-hard material.

Quantity:
  • PJS
  • ZCY
  • PJS-300  PJS-200

Product description

Slap-type vibrating screen (slap standard vibration sieve machine) also known as slap screen, is one of the commonly used laboratory testing equipment, consisting of engine base, sifter, transmission parts etc. Be applied to test the composition of common abrasive particle size and super-hard material size ,and grading the super-hard material.

This machine can be equipped with special fixture, can clamp 200 standard screen, and can be clamped Phi 75, Phi 100 sieve, clamping is convenient and flexible, firm clamping, and can automatically stop.

Slap vibrating sieve


Technical Parameters

No

Name

Parameter

Unit

1 Shakingtimes 290(+-)6 Times/min

2

Slap times 156(+-)3 Times/min

3

Reciprocating stroke 25 Mm

4

Slap height 38(+-)6 Mm

5

Sieve diameter 200/150/100/75 Mm

6

The quantity of layer 1-7 s

 7

Power 370 w


Features

1.Structure is more compact, body weight is lighter

2.More durable, lighter, faster and more convenient

3.More simple to maintenance ,easy to buy and repair the parts

4.High efficiency, with two function of reciprocating and rattling at the same time

5.Screen surface without block, feeding material quickly, screening completely


Application

Slap vibrating screen is widely used in the scientific research of metallurgical, chemical, construction,

geological and other departments, and the screening and testing of solid materials in the production department.


Product pictures

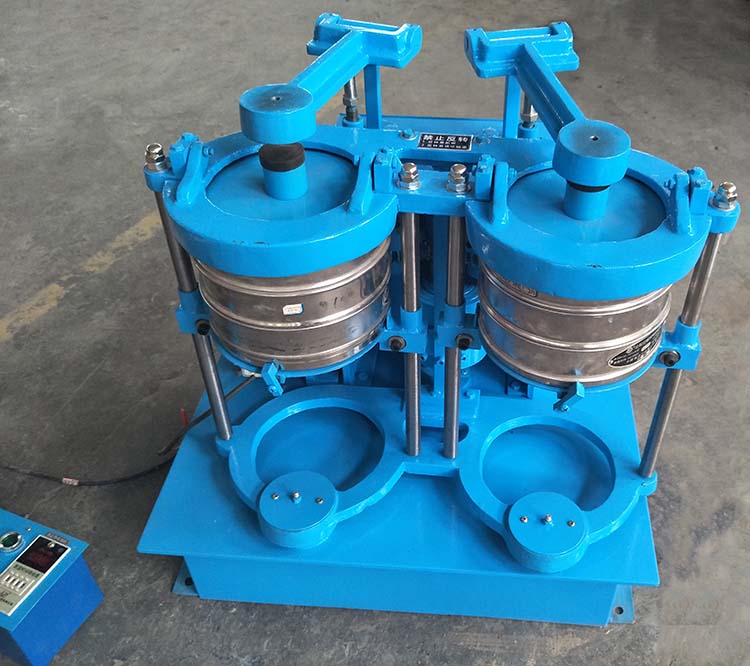

Slap vibrating sieve (2)

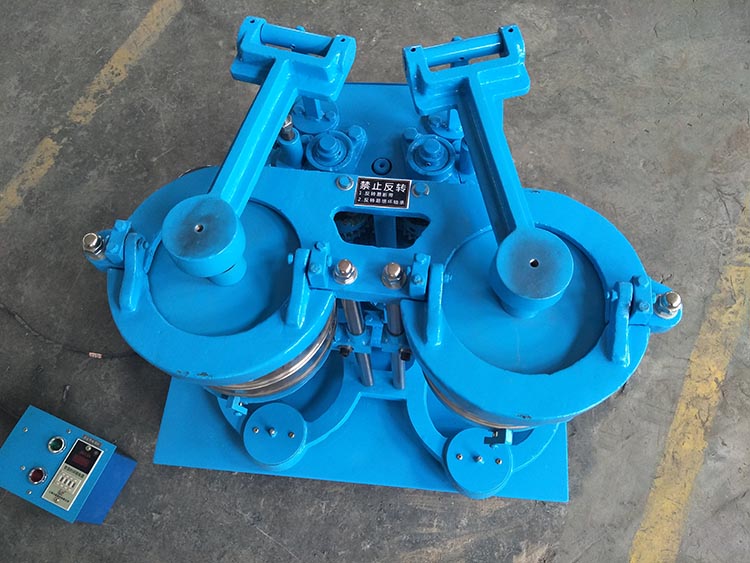

Slap vibrating sieve (1)

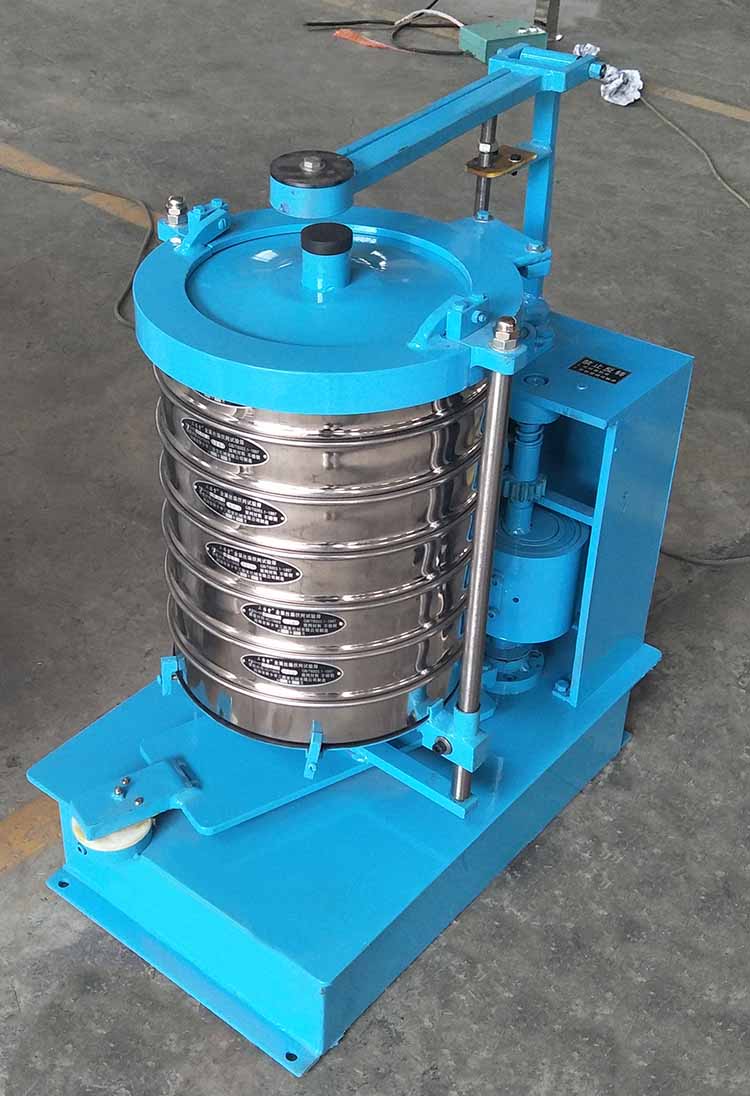

Slap vibrating sieve (3)
