ZKS
ZCY
ZKS-1 ZKS-2 ZKS-3 ZKS-4 ZKS-5 ZKS-6 ZKS-7

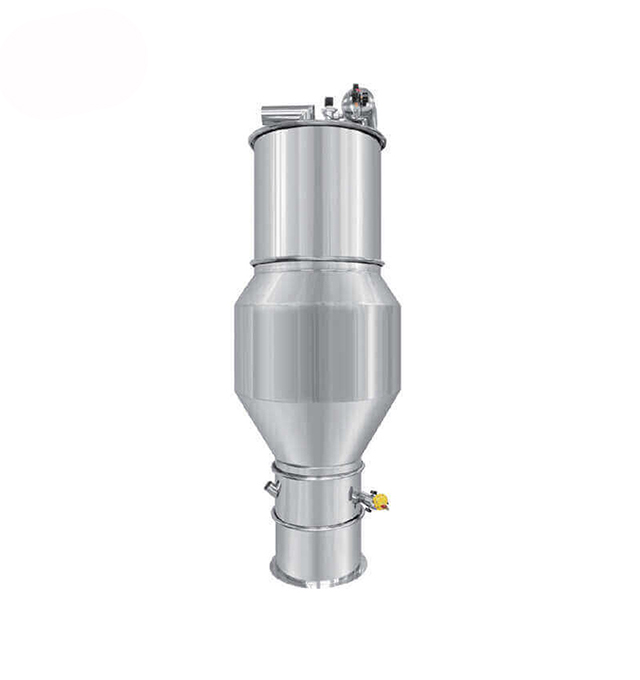

Product description
Vacuum conveyor uses electrical pump as power. With the help of this device, the materials could be conveyed to mixing machine/ reactor/ hopper/ tablet-press/ packing machine/ vibrating screen/ pelletizer/ mill machine from containers. By this machine, we could reduce the workers’ working strength and prevent the dust pollution; this could ensure the productions meet the GMP’s requirements.
Technical parameter
Model | Capacity(kg/h) | Motor power(KW) | Stanard size(mm) | Standard weight(KG) |
ZKS-1 | 350 | 1.5 KW | Ф220*570 | 10 |
ZKS-2 | 600 | 2.2 KW | Ф220*780 | 21 |
ZKS-3 | 1200 | 3.0 KW | Ф290*850 | 30 |
ZKS-4 | 2000 | 5.5 KW | Ф420*1150 | 40 |
ZKS-5 | 3000 | 4.0KW | Ф420*1250 | 55 |
ZKS-6 | 4000 | 5.5KW | Ф420*1350 | 70 |
ZKS-7 | 5000 | 7.5KW | Φ420*1550 | 90 |
Working principle
ZKS-series vacuum conveyors use whirlpool pump as the power, and make the suction and all the system in a negative pressure condition. So that materials are conveyed from suction to hopper. The material and air flow are separated in the hopper by filter. After the separation, material is conveyed to the receiving device. Feeding and unloading are switched by reversing valve. And the reversing valve is controlled by the control-center.
Product features
1. Capacity: The conveying capacity can reach 10t / h;
2. Flexible: Small size and easy to install and move;
3. Modular design, replacement components can be used for a variety of materials;
4. No noise: Compressed air drives the vacuum generator to generate vacuum to prevent noise pollution;
5. Environmental protection: The whole process is airtight to prevent dust pollution;
6. No maintenance: automatic pulse blowback, no need to replace the filter element frequently;
7. No vibration, energy saving, maintenance costs;
8. No heat is generated during the working process, and there is no hidden danger in explosion-proof.

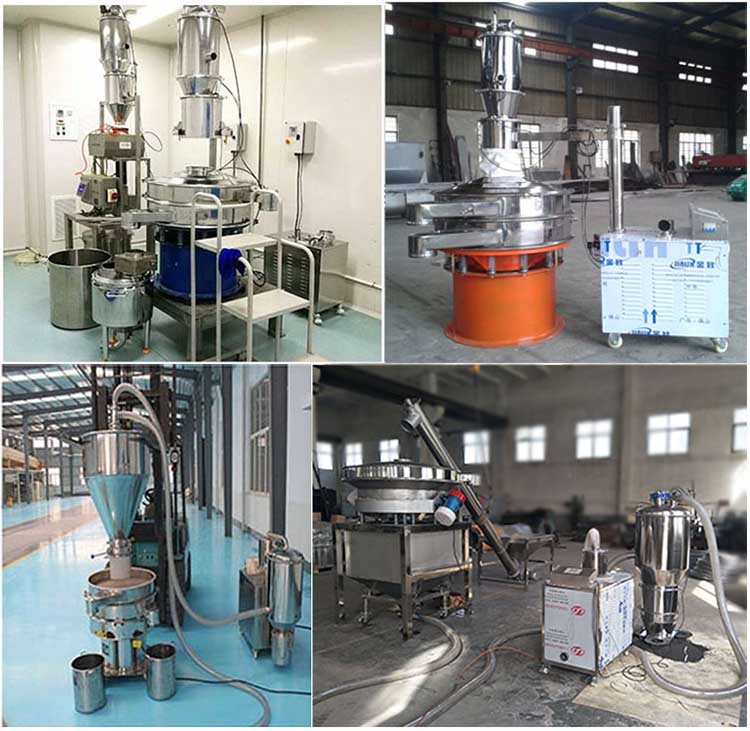

Product pictures
