YBS-1200-3S
ZHONGCHENGYOU

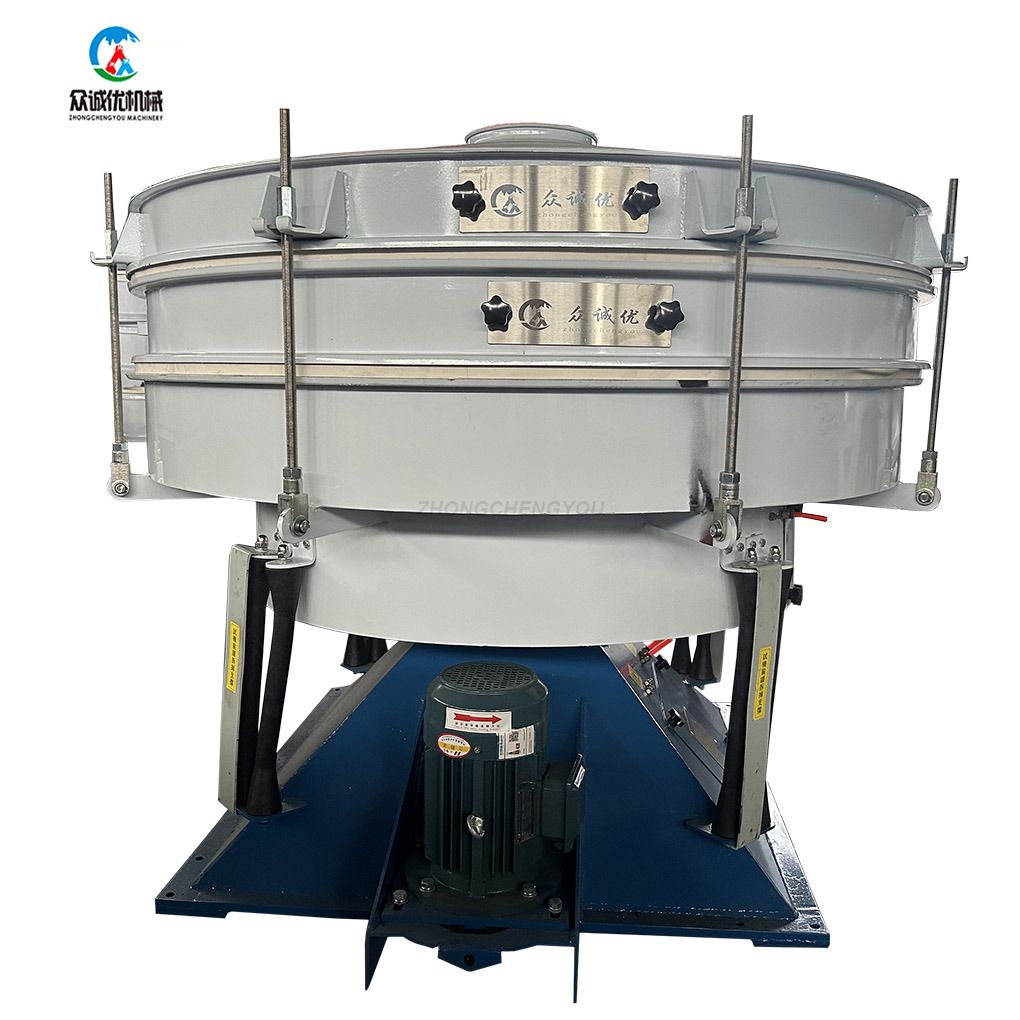

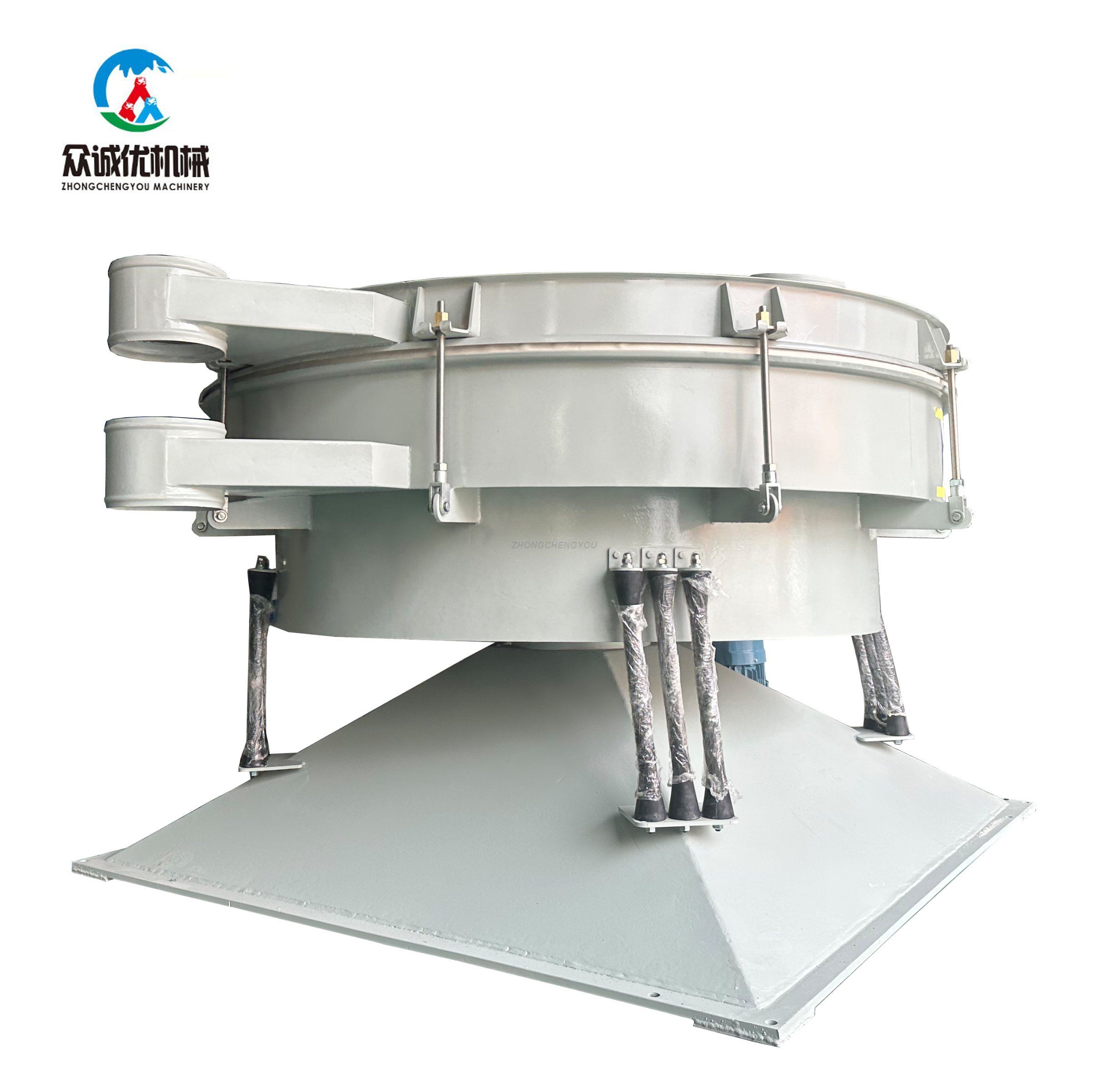

The design of the circular tumbler screen is a high-efficiency screening machine specially designed to meet the needs of large-volume, higher-screening manufacturers. The simplest screening is to use both eyes to screen with both hands. Simulation, it is currently the most effective simulation of the effective principle of manual screening movement (screening accuracy, efficiency, screen life is 5-10 times that of conventional round screen), which meets all fine and ultra-fine powders and particles Shaped materials, especially suitable for difficult materials.

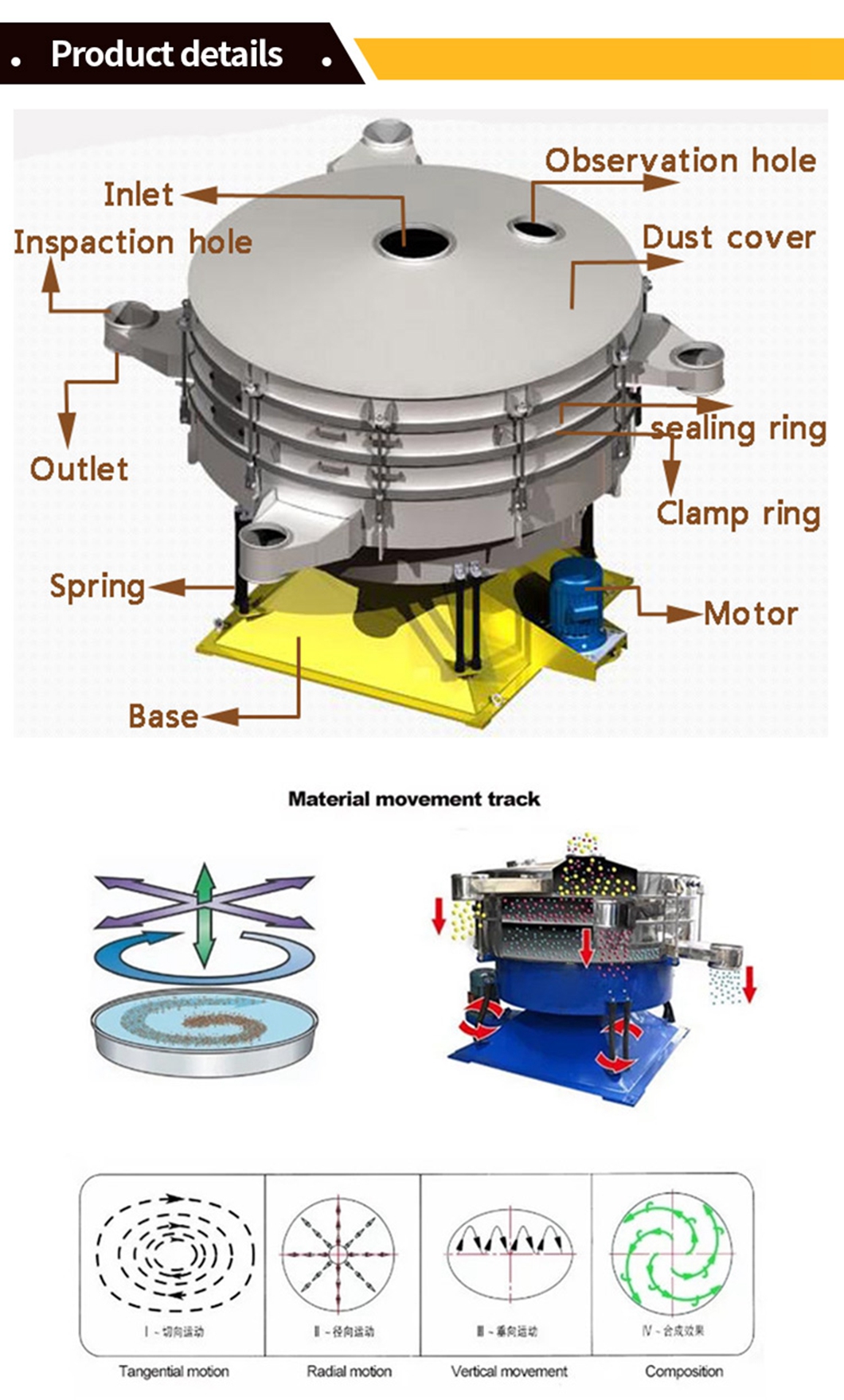

YBS series tumbler screen is a low-frequency vibrating screen that imitates artificial vibration. The principle is that the instantaneous motion is the synthesis of the circular motion along the radial displacement and the displacement as the axis. Can regulate the vibrator eccentricity produce nonlinear three-dimensional movement, material also can produce the same approximation manual operation movement, so as to achieve the aim of screening, coupled with sieving attachment can get more ideal screening effect.
Suitable for round ball, cylindrical, flaky, even irregular shape easy to be blocked and need precise screening materials.
Model | Availability of screening area (m*m) | Screen slope (angel) | Grain size (mm) | Double amplitude (mm) | Power (kw) | Process capacity (t/h) |
YBS -1000 | 0.71 | 0-10 | ≦10 | 5-8 | 1.5 | 8-15 |
YBS -1200 | 1.11 | 5-8 | 2.2 | 15-30 | ||
YBS -1600 | 1.83 | 5-8 | 2.2/4 | 25-50 | ||
YBS -2000 | 2.62 | 5-8 | 2.2/4 | 30-60 | ||
YBS -2200 | 3.46 | 3/4 | 35-60 | |||
YBS -2600 | 5.31 | 5-8 | 5.5 | 45-60 |
Notes:The parameter above is just for reference.More models pls inquiry us directly.
Features of circular tumbler screen:
YBS type circular tumbler screen sieve uses ranges of professional designs to reach customers’ extremely demand:

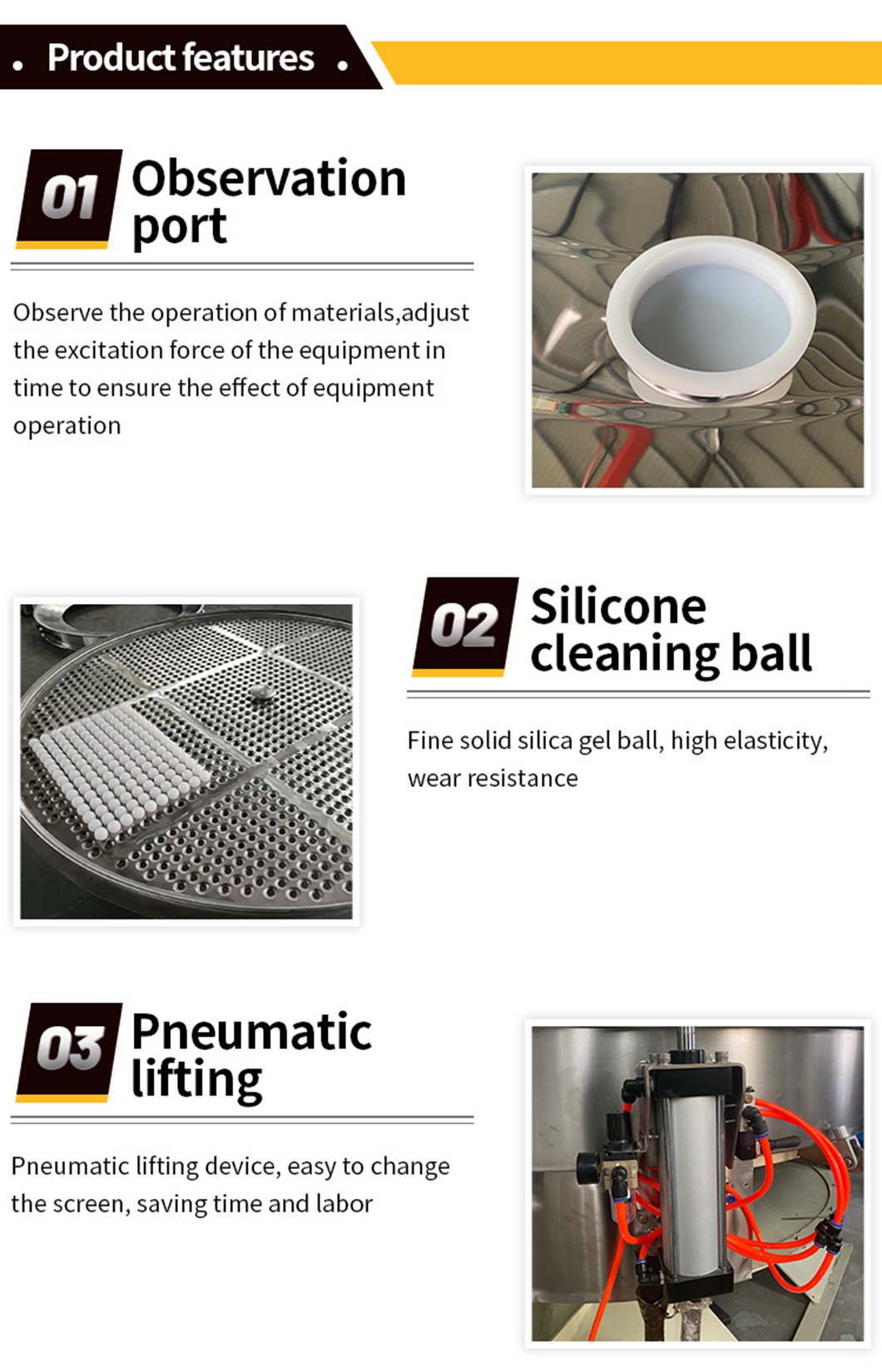

1. Cleaning system with balls, air, ultrasonic is equipped to prevent blinding and maintain easily.
2. Grading up to 6 particle sizes, achieving 99% separating accuracy.
3. Reasonable acceleration, long-lasting parts, reduced maintenance.
4. Less 75 decibels noisy, the optimized balance of balance, low dynamic load on the foundation
Applicable industry of circular tumbler screen:
Food industry: sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil.
Construction Industry: sand, glass beads, plaster, abrasives Grit/shot, borax.
Chemical Industry: fertilizer, rubber, polystyrene beads, paint, detergents, latex, catalyst, casein.
Recycle: animal blood, paper effluent, brewer yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every macchine before delivery.
2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
