Product description
Drum screen is mainly composed of several circular screen, and is in a tilt state with ground on the whole, the screening drum rotates under certain rotation speed through deceleration system, the materials are screened from top to down through screening drum, fine materials are discharged from bottom of screening drum front, and coarse materials are discharged from tail of screening drum bottom.
Technical parameters
There are different models of drum screen for your reference, and we will choose a suitable model according to your specific material and application.
Model | Specification(m) | Inclination | Rotating speed (rpm) | Mesh size (mm) | Material size(mm) | Capacity(m3/h) | Motor power(kw) | |
Mesh size(2mm) | Mesh size(20mm) | |||||||
GTS820 | Φ0.8X2 | 6° | 32 | 2-20 | 网孔尺寸X2.5 | 7 | 30 | 3 |
GTS1030 | Φ1X3 | 6° | 25 | 2-20 | 网孔尺寸X2.5 | 10 | 60 | 4 |
GTS1230 | Φ1.2X3 | 6° | 20 | 2-20 | 网孔尺寸X2.5 | 12 | 100 | 5.5 |
GTS1530 | Φ1.5X3 | 6° | 17 | 2-20 | 网孔尺寸X2.5 | 16 | 120 | 5.5 |
Applicable industry
Construction industry: used for grading large and small stones in the quarry, as well as separating soil and stone powder;
Coal industry: used for the separation of lump coal and pulverized coal and coal washing (a component of coal washing machinery;
Chemical industry: the mineral processing industry is used to classify large and small lumps and separate powdery materials.

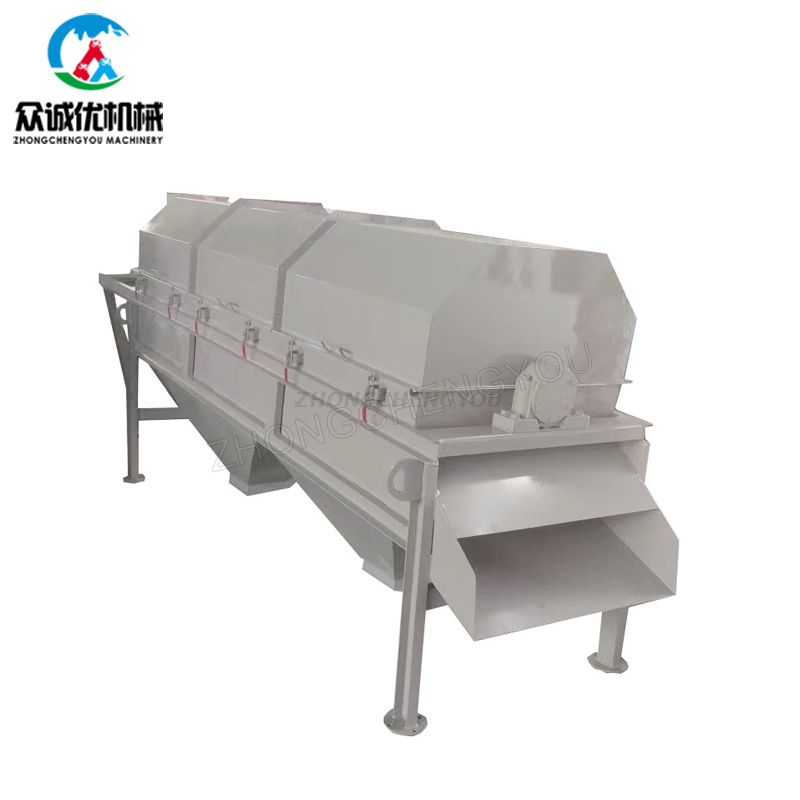

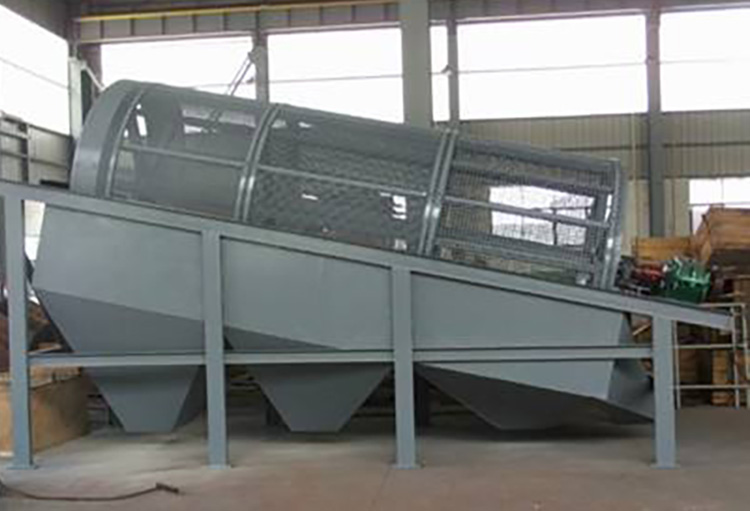

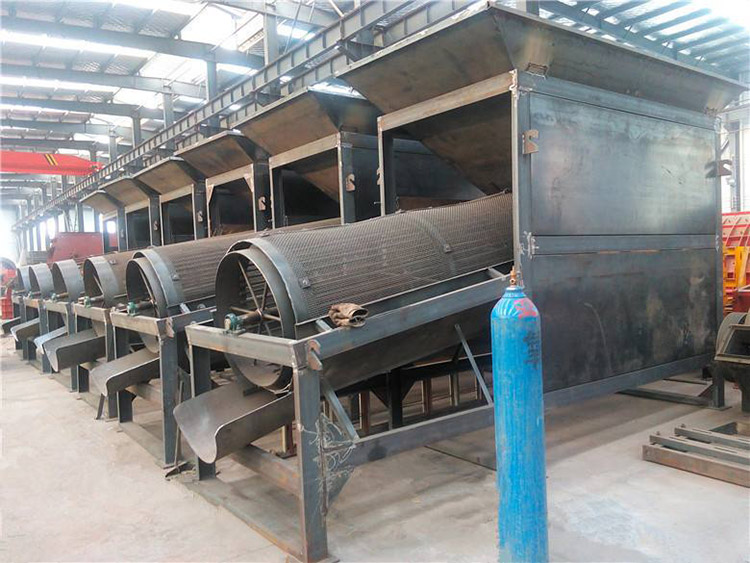

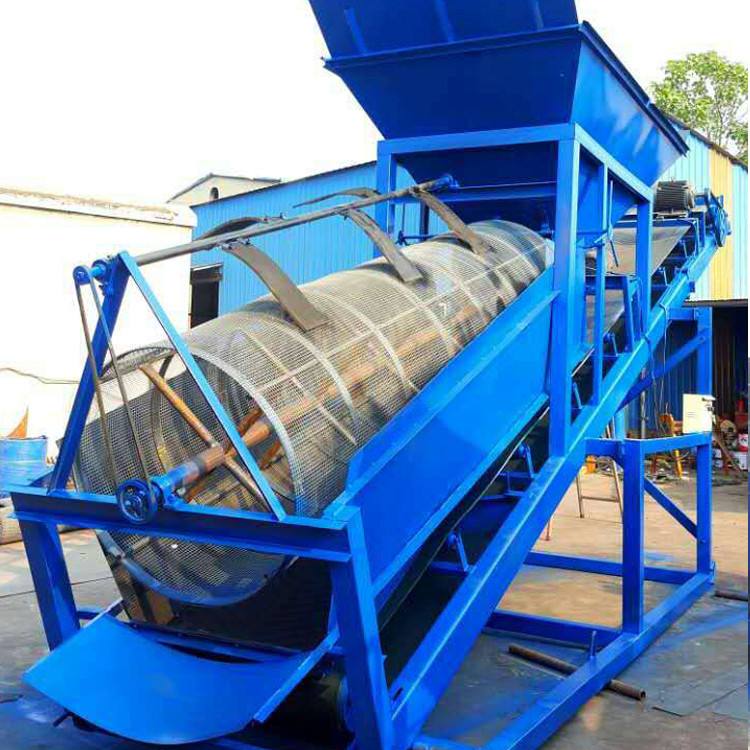

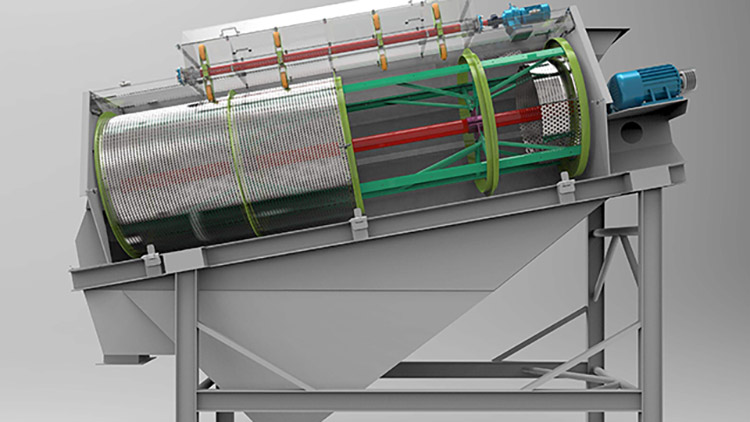

Product pictures
Product description
Drum screen is mainly composed of several circular screen, and is in a tilt state with ground on the whole, the screening drum rotates under certain rotation speed through deceleration system, the materials are screened from top to down through screening drum, fine materials are discharged from bottom of screening drum front, and coarse materials are discharged from tail of screening drum bottom.
Technical parameters
There are different models of drum screen for your reference, and we will choose a suitable model according to your specific material and application.
Model | Specification(m) | Inclination | Rotating speed (rpm) | Mesh size (mm) | Material size(mm) | Capacity(m3/h) | Motor power(kw) | |
Mesh size(2mm) | Mesh size(20mm) | |||||||
GTS820 | Φ0.8X2 | 6° | 32 | 2-20 | 网孔尺寸X2.5 | 7 | 30 | 3 |
GTS1030 | Φ1X3 | 6° | 25 | 2-20 | 网孔尺寸X2.5 | 10 | 60 | 4 |
GTS1230 | Φ1.2X3 | 6° | 20 | 2-20 | 网孔尺寸X2.5 | 12 | 100 | 5.5 |
GTS1530 | Φ1.5X3 | 6° | 17 | 2-20 | 网孔尺寸X2.5 | 16 | 120 | 5.5 |
Applicable industry
Construction industry: used for grading large and small stones in the quarry, as well as separating soil and stone powder;
Coal industry: used for the separation of lump coal and pulverized coal and coal washing (a component of coal washing machinery;
Chemical industry: the mineral processing industry is used to classify large and small lumps and separate powdery materials.
Product pictures
