ZXS-520
ZHONGCHENGYOU
ZXS-520, ZXS-820, ZXS-1020, ZXS-1220, ZXS-1520

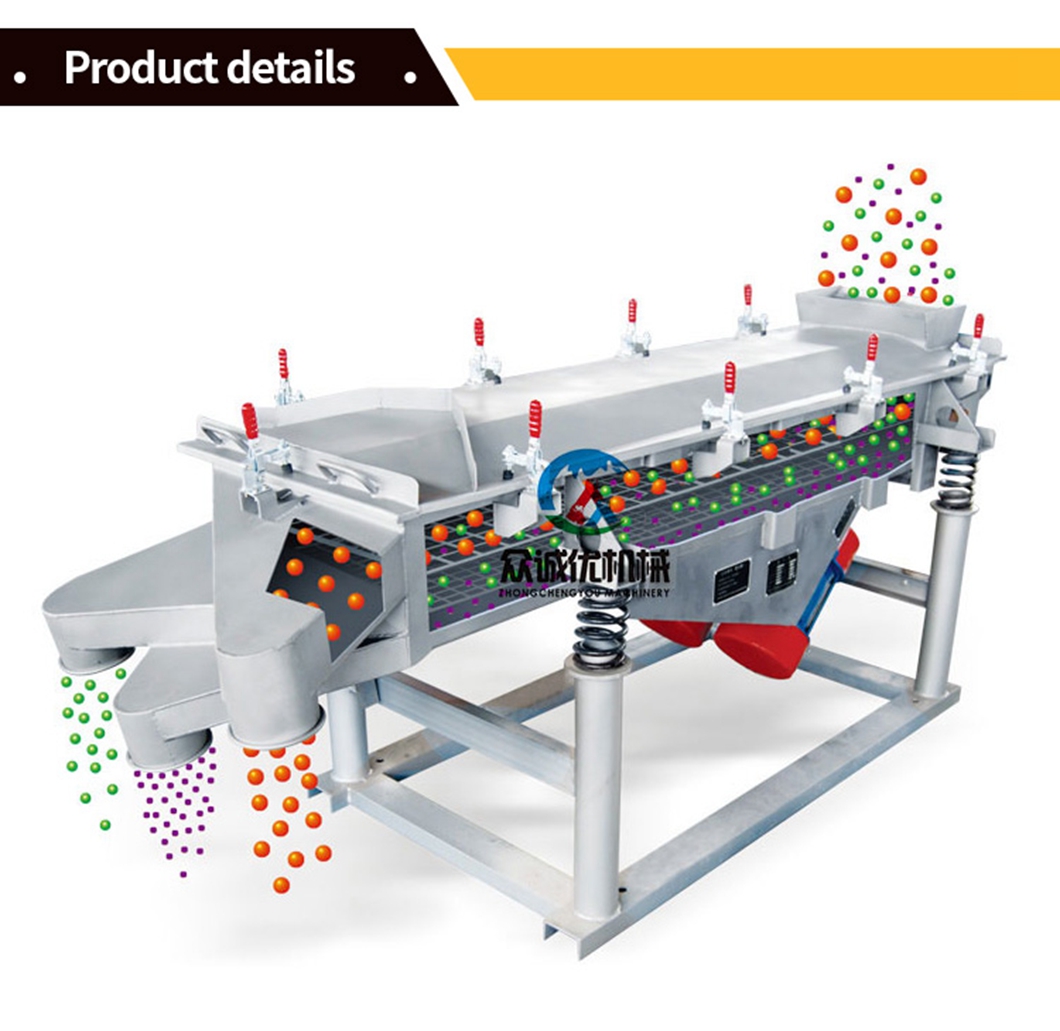

ZXS Linear vibrating screen uses double vibrating motors to drive,when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel. Applied in flowing line to achieve automatical operation.
ZXS linear vibrating screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-layer screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration,cleaning raw material,separation of iron from the material,etc.
Model | ZXS-520 | ZXS-840 | ZXS-1030 | ZXS-1255 | ZXS-1650 |
Dimension(mm) | 500*2000 | 800*4000 | 1000*3000 | 1200*5500 | 1600*5000 |
Granularity(mm) | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 |
Speed(r/min) | 960 | 960 | 960 | 960 | 960 |
Amplitude | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 |
Deck | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
Power(kw) | 2×0.75 | 2×1.5 | 2×1.9 | 2×2.2 | 2×3.0 |
Offers different materials, different models of vibrating screen and can be customized
1. Large Carbon Steel Linear Screen Scope of application: General industry Screening for Large Yield
2. Linear screen with silo Scope of application: Small production Uniform Fine Screening
3. Linear screen for solid-liquid separation Scope of application: Dewatering and filtration of liquid slurry
4. Common carbon steel linear sieve Scope of application: Classification and Screening of General Industry
5. Complete stainless steel linear screen Scope of application: Screening of Food and Pharmaceutical Industry

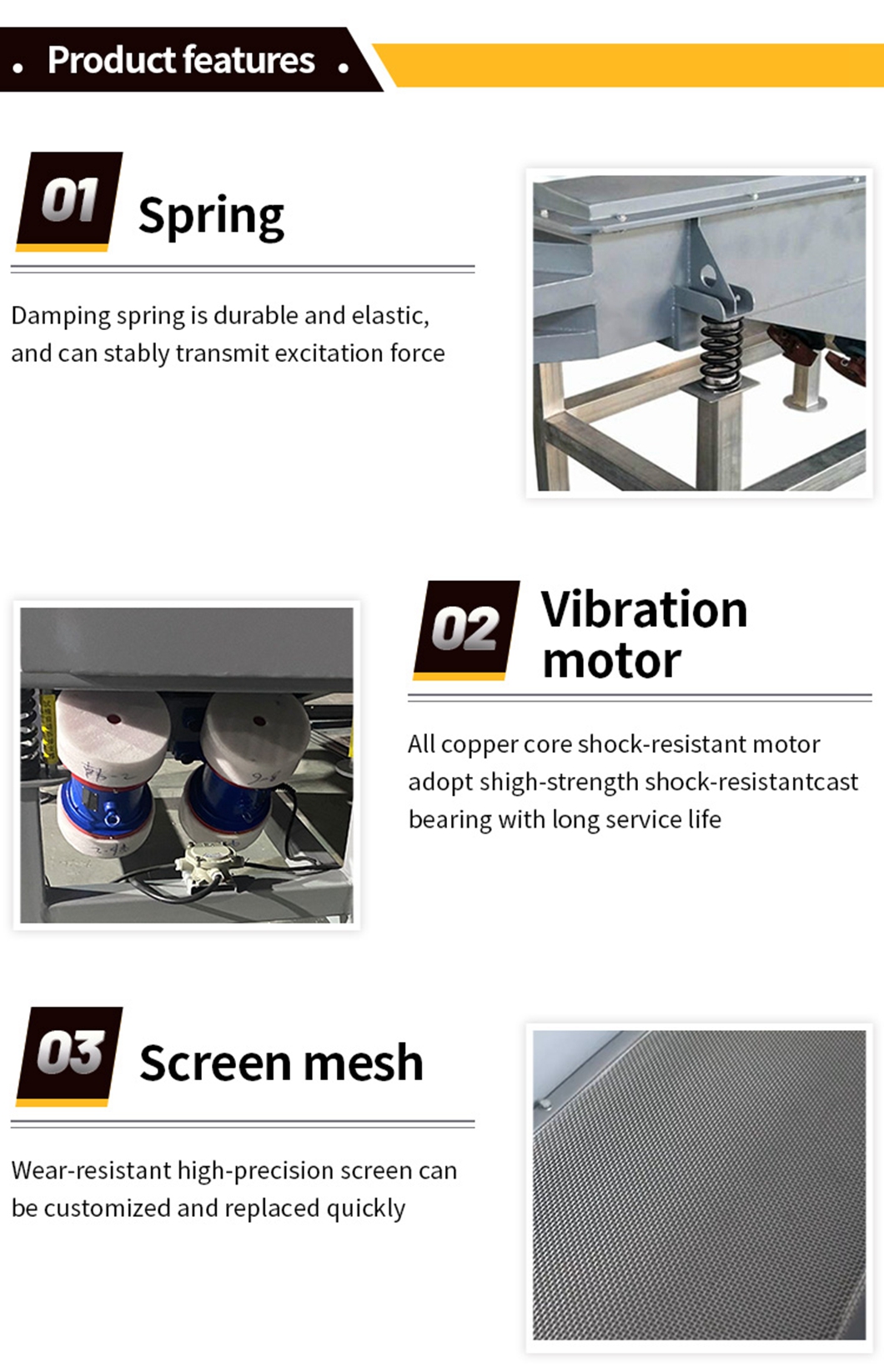

Features——Linear Vibrating Screen
1.Easy to operate and maintain.
2.Low consumption with high yield and low cost.
3.Fully enclosed structure, automatic layout, more suitable for pipeline operations.
4.Good sealing without dust flying.
5.Can be used for single or multi layer.
6.Material auto discharge, be able to continuous operation.
7.Every part of the screen box used copper plate and section welded together.
Application in details——Linear Vibrating Screen
1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2.Organic fertilizer industry.
3.Plastics industry.
4.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
5.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
6).Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
8.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc
1 Q: Can I get special design for my own products?
A: We have our own R&D department to offer customization service for our customer.
2. Q: Are you a factory or a trading company?
A: We are a professional factory who gets 20+ years professional expericnce.
3.Q: How about price?
A:Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4. Q: What is your payment term?
A: T/T 100% before shipment, L/C at sight, western union or Trade Assurance order recommended.
