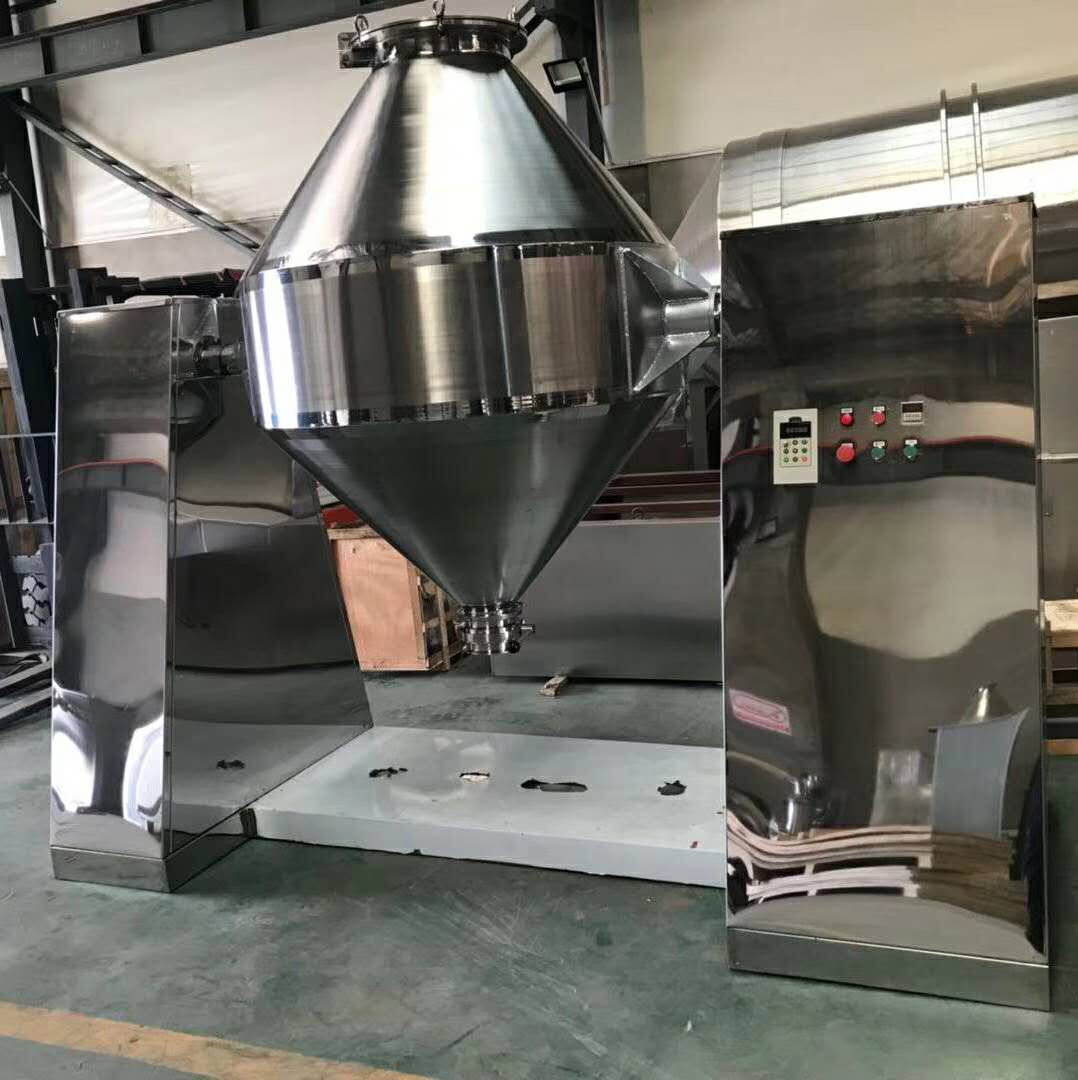

Double-cone mixer is one kind of mixing equipment with high efficiency. It is used for the uniform mixing of various powdery and granular materials. The materials can be sufficiently mixed under the continuous rotating of double-cone bucket.
Working principle

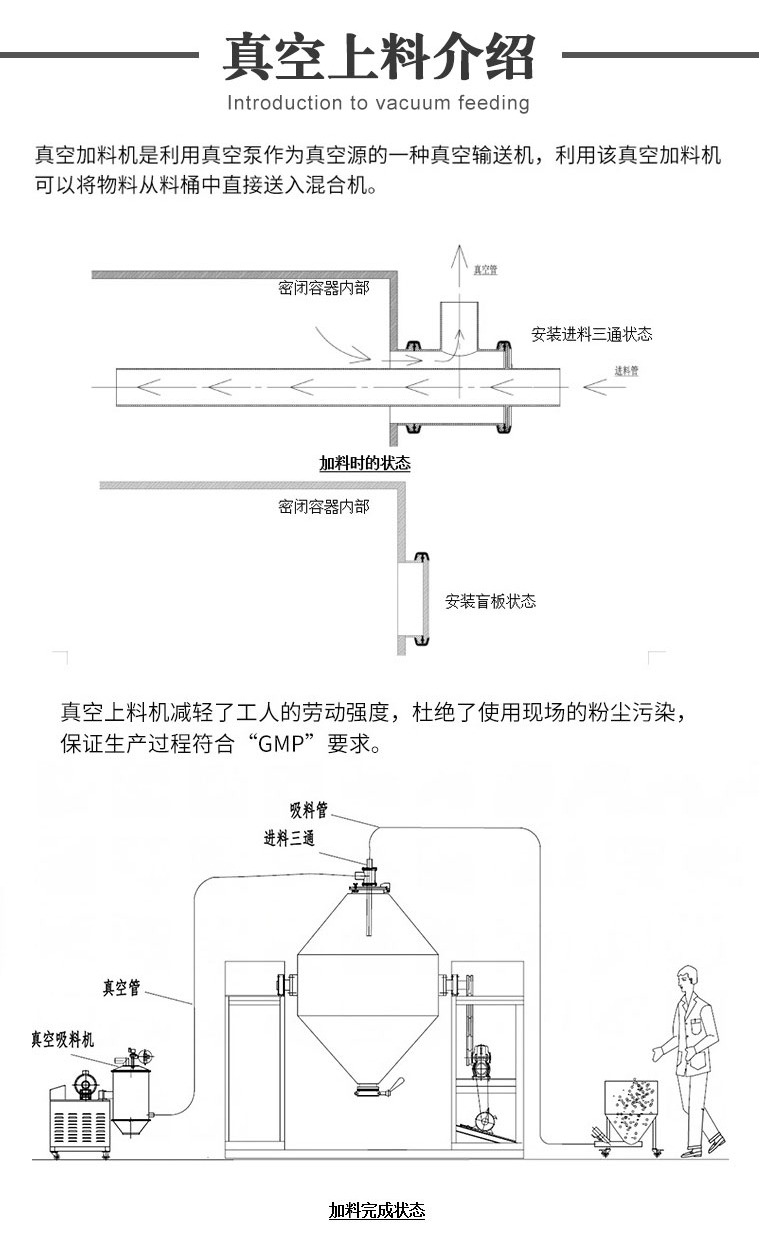

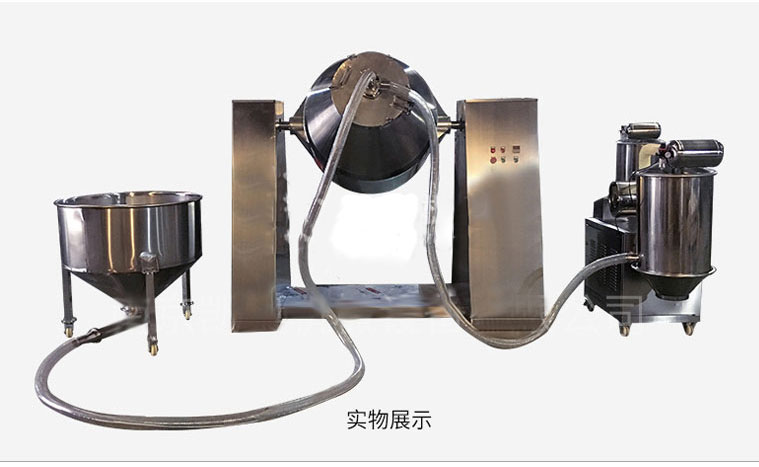

The working principle is following, put different materials into the double-cone bucket by vacuum conveyor or manually feeding, seal the bucket cover, start the machine, the double-cone bucket will start to rotating, at the same time, the agitating vane inside will also start to work. The materials will start it mix during the rotating process, and the agitating vane will break those agglomerated materials.
Double-cone mixer are now widely used into the industries of magnetic powder, ceramics, pharmaceuticals, feed and so on.
Features & Benefits
• Smart Engineering Structure
Double-cone mixer is designed by our engineers with smart structure. The bucket, agitating vane and other parts are combined under one reliable structure and driven only by one motor. So, the maintenance will be very simple.
• Enclosed Sealing Structure
The bearing of double-cone mixer adopts the dust-proof treatment of mechanical
seal, which guarantee one fully enclosure. The powder will not leak into the bearing and damage them.
• Quick Release Output valve
Double cone mixer use quick release output valve, which makes the
operation very easy.
Detailed data of Double Cone Mixer
Model | Total volume | Capacity (kg/batch) | Mixing time(min) | revolution of cylinder(rpm) | Power(kw) | Rotation height(mm) | Weight (kg) |
SZH100 | 100 | 50 | 4-8 | 12 | 1.1 | 1700 | 200 |
SZH200 | 200 | 100 | 4-8 | 12 | 1.5 | 1850 | 280 |
SZH300 | 300 | 150 | 6-10 | 12 | 2.2 | 1850 | 310 |
SZH500 | 500 | 250 | 6-10 | 12 | 3 | 1950 | 550 |
SZH1000 | 1000 | 500 | 6-10 | 12 | 4 | 2460 | 810 |
SZH1500 | 1500 | 750 | 6-10 | 10 | 7.5 | 2540 | 980 |
Application:
Double Cone Mixer is widely used in agriculture, food, medicine, mineral, chemistry, ceramics and other industries.
