WLDH-horizontal ribbon mixer is driven by the inner and outer diameter screws installed on the stirring shaft to drive the material in the barrel, so that the agitator can turn the material in the barrel to the maximum extent. In the structure of the agitator, the spiral is designed as inner and outer spirals, and the left and right are opposite to each other. When the agitator is working, the inner spiral drives the material close to the axis to rotate the axis, the axial direction is pushed from the inside to the two sides, and the outer spiral drives the material close to the barrel wall to rotate. The shaft rotates, and the axial direction is pushed from both sides to the inside, so that the material is convectively circulated in the barrel, sheared and mixed, and the material is quickly and evenly mixed in a short time.
Introduce:

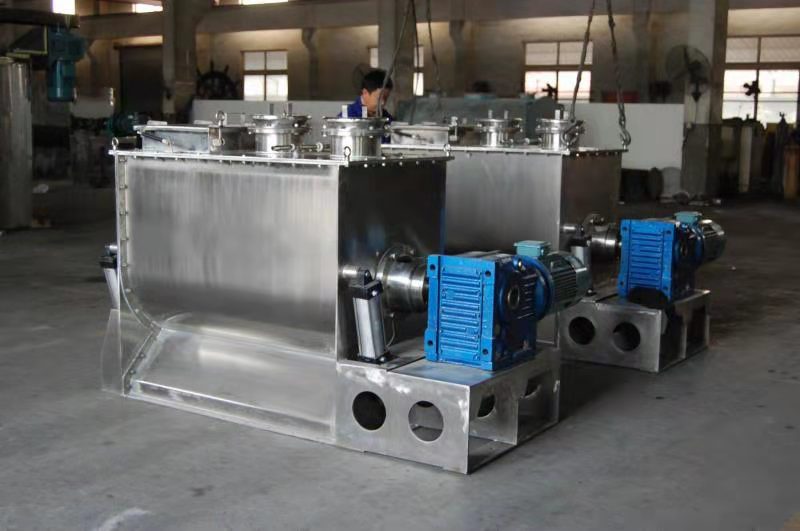

The horizontal ribbon mixer consists of a U-shaped container, a ribbon stirring blade and a transmission part; the ribbon-shaped blade is generally made into two layers or three layers, the outer spiral collects the material from both sides to the center, and the inner spiral collects the material. It is transported from the center to both sides to form convective mixing. The ribbon mixer has a good effect on the mixing of viscous or cohesive powders and granules, as well as the mixing of liquid and paste materials in the powders and granules. The cylinder cover can be made into a fully open door to facilitate the cleaning of the equipment. Replace the product.
A, driving advantage:
The standard product adopts the belt pulley to drive the cycloid reducer. Compared with the large torque of the gear reducer, the elastic connection of the belt drive has the advantage of protecting the transmission parts when overloaded.
B. Flexible disassembly and assembly
The ribbon spindle is connected to the drive shaft flange in the cylinder, and can be quickly disassembled when maintenance or replacement of the mixer shaft type is required. The flexible disassembly and assembly design makes the U-shaped cylinder and the two end plates completely welded, avoiding the accumulation gap caused by the flange connection of the cylinder and reducing the residue.
C, disconnected type ribbon

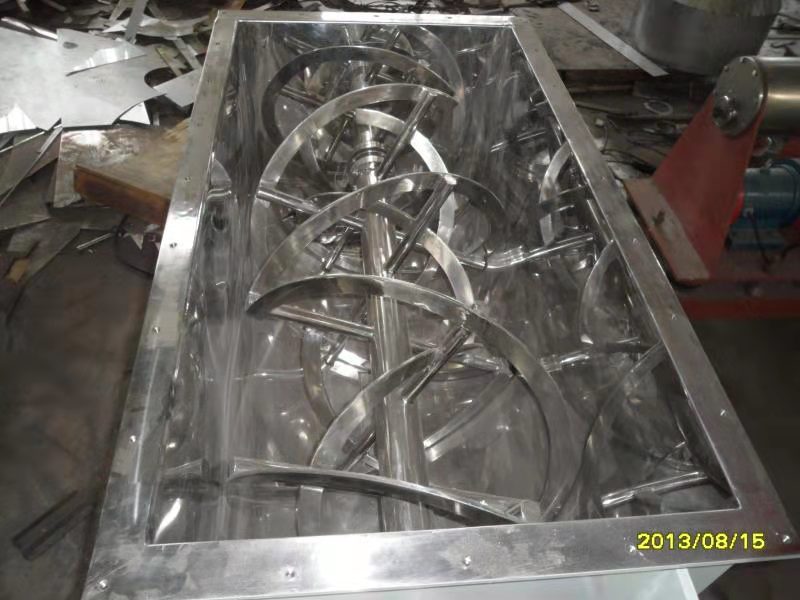

Compared with the continuous helical belt, the disconnected helical belt has greater shearing motion on the material, and can make the material form more eddy currents in the flow, speed up the mixing speed and improve the mixing uniformity.
D. Discharge ways
The discharge form is generally a pneumatic (manual) flap valve. The arc valve is tightly embedded in the cylinder and flush with the inner wall of the cylinder. There is no material accumulation and mixing dead ends. The reliable edge seal ensures no leakage during frequent switching. Phenomenon.
E, cooling and heating
A jacket can be added to the outside of the mixer barrel, and the material can be cooled or heated by injecting cold and hot medium into the jacket; the cooling is generally pumped into industrial water, and the heating can be passed into steam or electric heating heat transfer oil.
F. Spindle seal
When mixing ultra-fine powder, the main shaft sealing form can increase the air-tight setting, which can effectively block the circulation of air and powder inside and outside the cylinder.
